VR3G-1P Vandal resistant intercom Piezo self test

VR3G-1P

Item Number: 1008021015

Vandal Resistant, 3 gang, 1 Piezo button, IP and SIP intercom

  • Powerful audio technology, including high sound pressure, automatic gain control, and active noise echo canceling
  • Vandal Resistant Design with IK10
  • IP66 - Dirt, dust and water resistant
  • Anti-ligature design
  • Tamper switch
  • Piezo Call Button with self-test capability
  • Cybersecurity compliant
  • Can operate in SIP, IC-EDGE, and ICX-AlphaCom mode
Door Intercom
Prison Intercom
Emergency points
SIP
IC-Edge
alphacom_40x40 ICX-AlphaCom
IP66 IP66
IK10 IK10
HD Voice HD Voice
Active Noise Cancelling Active Noise Cancelling

The Vandal Resistant Intercom Station VR3G-1P utilizes the latest technology to create unparalleled audio quality. Some of the many features include: HD voice quality, Open Duplex, Active Noise Cancellation, and an Electret Omni Directional microphone. The Piezo button has no moving parts, which makes it highly durable and increases the station's resistance to damage. These features, in conjunction with the company's 70+ years of experience with acoustic technology, are just a few of the many factors that contribute to our superior audio quality.

See Zenitel Wiki for more information



Audio
Noise cancelling Yes. Suppression of musical noise, suppression of static noise, suppression of rapidly changing noice
Codecs G.711, G.722, G.729
Frequency range, G.722 Codec 200 Hz – 7000 Hz
Audio technology Modes: Full open duplex, switched open duplex, Adaptive jitter filter, Local tone generator, Audio mixing - 3 channels, Sound level detection (scream alarm), Automatic gain control (microphone), Automatic volume adjustment
Internal speaker 3 W
Microphone technology Electret Omni Directional microphone
Automatic Volume Control (AVC) Yes
Acustic Echo Cancellation (AEC) Yes
SPL peak power at 1m 80 dBA
Voice signal at 1m 68 dBA
Hardware
Ethernet connector 1 x RJ-45
All other connectors Tool less, spring loaded, vibration proof terminals
General inputs and outputs 6 (configurable)
Outputs 12mA as LED drivers
SELV (safety Extra Voltage) 2A, 60W
Power options PoE and/or external power supply
PoE (Power over Ethernet) IEEE 802.3af standard, Class 0 (0.44W to 12.95 W)
Power consumption Idle 1.8W, max 12W (depending on volume)
External power supply 24 - 48 VDC (24 – 48 V)
Audio line out / induction loop signal 600 Ohm
Construction
Dimensions (HxWxD) 160x114x60mm
Dimensions after flush mount 160x114x4mm
Weight 0.74kg
Faceplate material A4 Steel
Electronics cover material Polycarbonate (translucent)
Gasket material low density soft EPDM-foam (closed cell), t:2mm.
Button material aluminium
Button travel length 0mm
Button activation force 3-5N
Networking & Protocols
Protocols IPv4 (with DiffServ), SIP, TCP, UDP, HTTPS, TFTP, RTP, DHCP, SNMP, ONVIF, CCoIP® , NTP
LAN protocols Power over Ethernet (IEEE 802.3 a-f) Network Access Control (IEEE 802.1x)
Management and operation HTTP/HTTPS (Web configuration) DHCP and static IP + IC-EDGE. Remote automatic software upgrade. Centralized monitoring
Advanced supervision functions E.g. network test, tone test, status reports
SIP support RFC 3261 (SIP base standard), RFC 3515 (SIP refer), RFC 2976 (SIP info)
DTMF support RFC 2833, 2976 (SIP info)
Environmental
IP rating 66
IK rating 10
Operating temperature range -20° to 75° C / -4° to 167 ° F
Relative humidity < 95% not condensing
Other Specifications
IP address information Speaks IP address after system boot
Poke protection, small/large diameter objects: Ø1.8mm
Country of manufacture Poland
Warranty 2 Years standard warranty, extendible up to total of 5 years (additional fee)

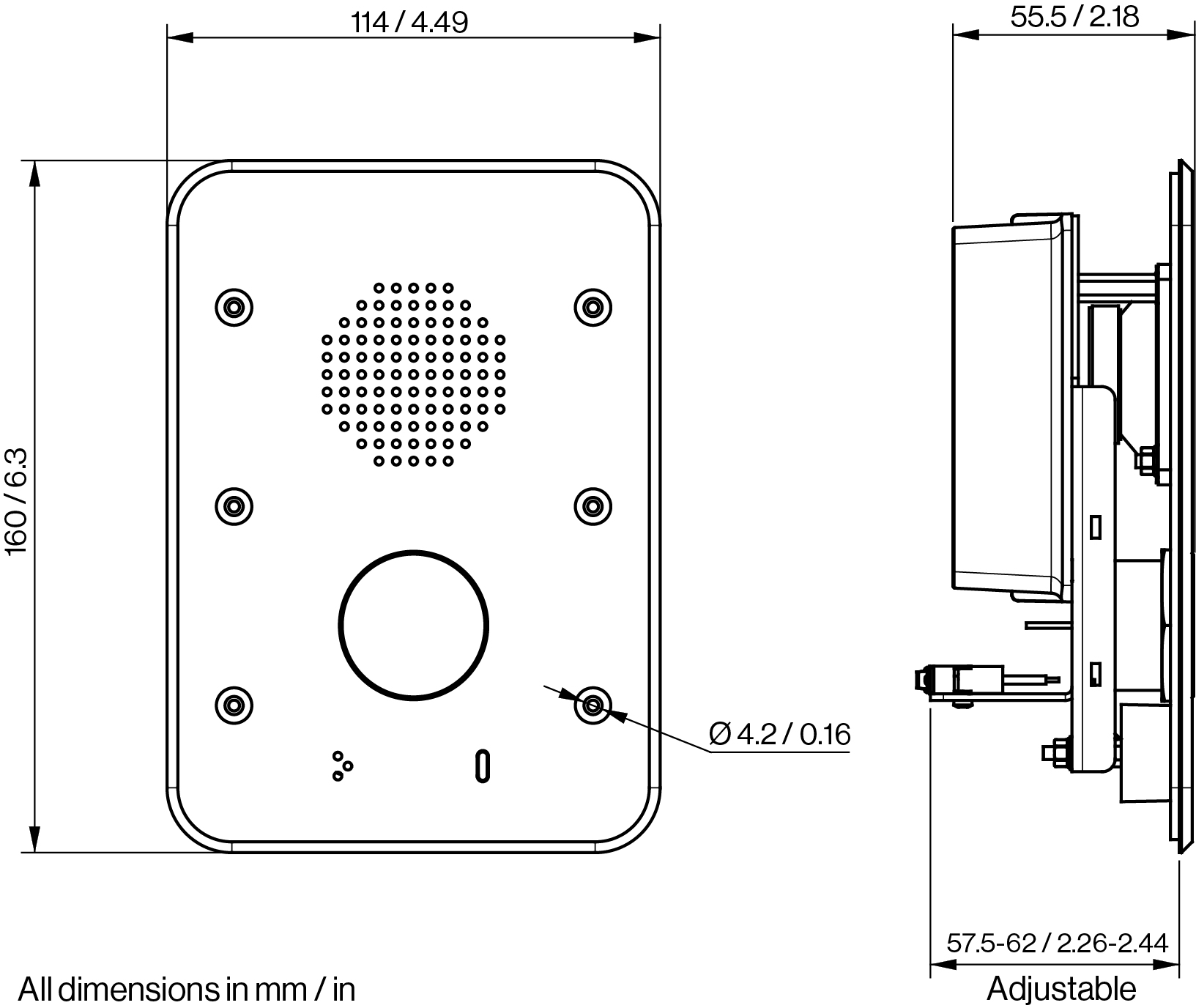

VR3G-1P Dimensions
